Product description

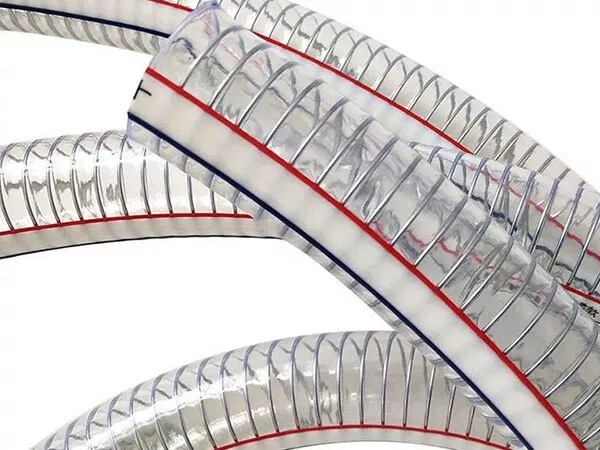

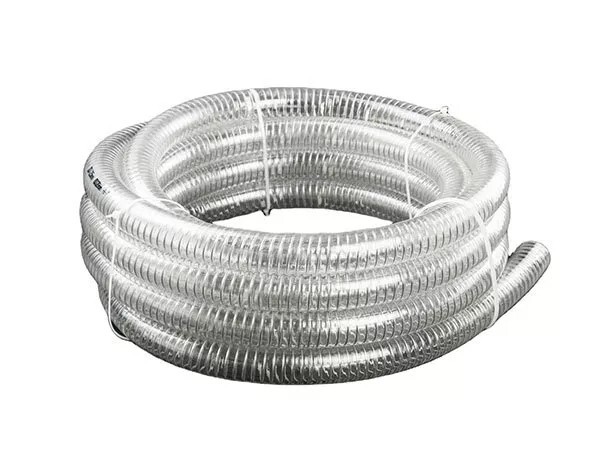

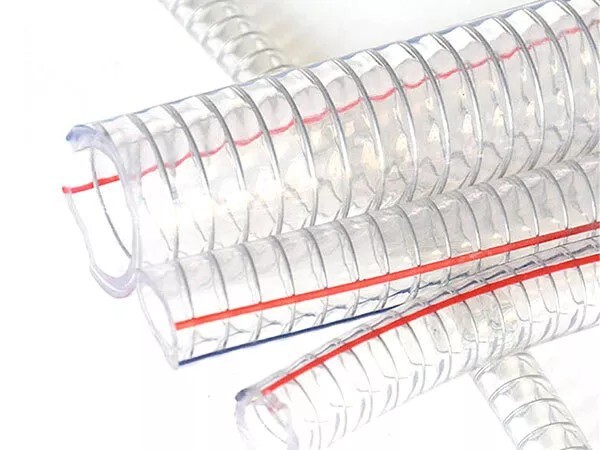

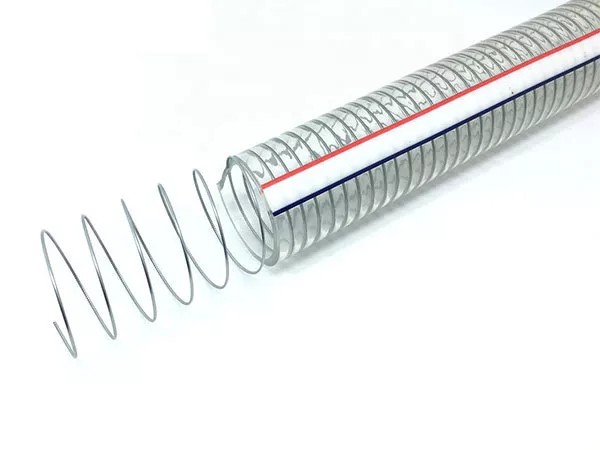

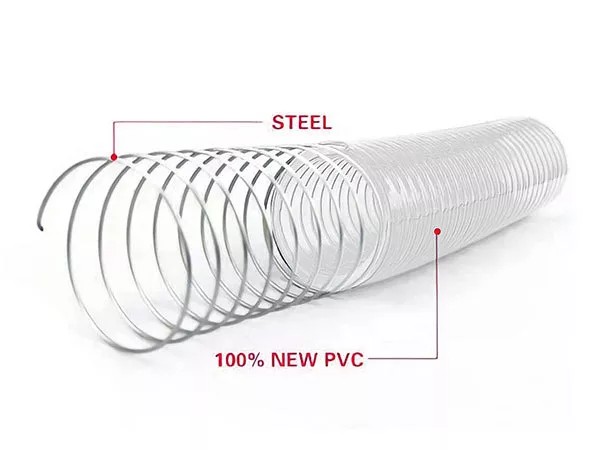

PVC Steel Wire Hose Purpose:
●The PVC steel wire spring hose hose is widely used for suction and discharge of water, oil and powdery articles in the industries, agriculture, engineering, foodstuffs and sanitation lines, the hose used for foodstuffs is made of special food grade pvc. It is non-toxic,light,without odor and transparent.
●The food grade PVC steel wire spring hose can be used for conveying milk, beverage, distilled liquor, beer, jam and other foods.
PVC Steel Wire Hose Advantages:
●The hose is transparent so the user can see what's going on inside.
●As a result chemicals and gases cannot attack the metal spring wire and the hose retains its strong anti-collapsible features under both high pressure and low vacuum applications.
●High-quality,low price,higher cost performance.
●Used for drawing and conveying water,oil and powder in factory,agriculture etc.
●Transparent, easy to check the contents.
●Anti-UV, anti-aginglong working life
Working Temperature: -10℃(-50℉) to 65℃(+150℉)



INCHSIZEMETRIC SIZELENGTHMAX.W.PMAX.B.PWEIGHT
At23℃
INCHI.D.mmO.D.mmM/ROLLBarBarg/m
1/4''611100824115
5/16''814100824150
3/8''915100824170
3/8''1016100824200
1/2''1218100824220
5/8''152250618300
3/4''192650618360
3/4''202650618320
7/8''222750618300
1''253350516540
1-1/4''324050516700
1-1/2''3848505151000
1-3/4''4556505151300
1-7/8''4859505151400
2''5062505151600
2-5/16''5869406121600
2-1/2''6478306122500
3''7690306123000
3-1/2''90108206124500
4''102116206124300
4-3/8''11012320394000
4-5/8''11713310395500
5''12714310396000
5-1/2''14015610396500
6''15217010268500
6-5/16''16017610268500
7''18019610268500
8''200224102612000
10''254286102620000
